XZN BMA180 Triple Axis Accelerometer Breakout

Ask a question SKU:WER-U-0582 Sold:1 Weight:0.012Kg
In stock, usually dispatched in 1-2 business days
Price: US$8.00
US$8.00
Shipping:
Return Policy:
No return necessary if product not as described, agree refund with seller View details
Seller Guarantees:
  • Click to Verify - This site has chosen an SSL Certificate to improve Web site securityClick to Verify - This site has chosen an SSL Certificate to improve Web site security
  • This site is protected by Trustwave's Trusted Commerce program
  • SGS No.: QIP-ASR144057
    Supplier Name: Shanghai Wer-China Industry Co., Ltd.

New Products  [more]

  • Product details
  • Shipping methods
  • Payment methods
  • Transaction History

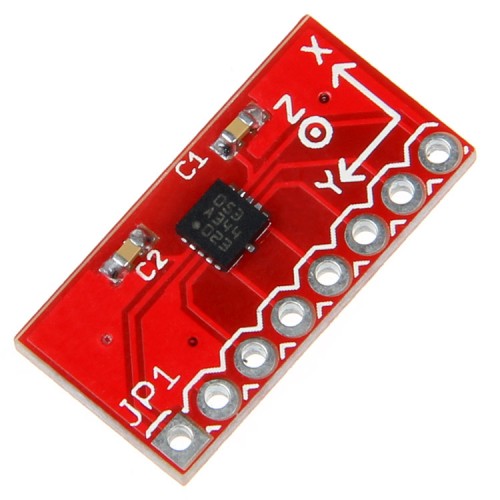

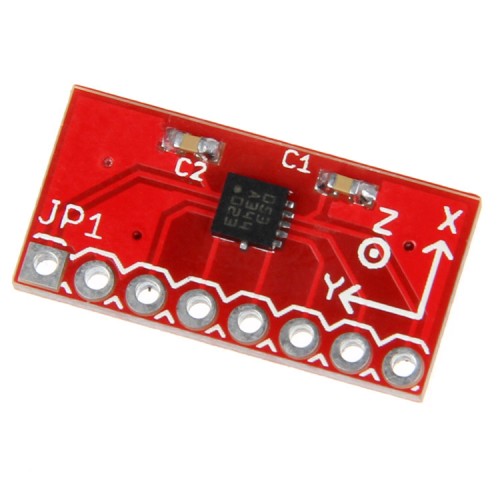

This is PCB board for Bosch's BMA180 three-axis, ultra-high performance digital accelerometer. The BMA180 provides a digital 14-bit output signal via a 4-wire SPI or I2C interface. The full-scale measurement range can be set to ±1g, 1.5g, 2g, 3g, 4g, 8g or 16g. Other features include programmable wake-up, low-g and high-g detection, tap sensing, slope detection, and self-test capability. The sensor also has two operating modes: low-noise and low-power. This PCB board friendly board breaks out every pin of the BMA180 to an 8-pin, 0.1" pitch header. The board doesn't have any on-board regulation, so the provided voltage should be between 1.62 and 3.6V for VDD and 1.2 to 3.6V for VDDIO. The sensor will typically only consume 650uA in standard mode.

Features:


Wide variety of measurment ranges (±1g, 1.5g, 2g, 3g, 4g, 8g and 16g)

14- or 12-bit ADC conversion

2 selectable I2C addresses

Programmable integrated digital filters

Programmable interrupt features:

2 main standard modes: low-noise and low-power

Sleep mode

Wake-up mode

Self-test capability



For more information of this product, please visit theWiki PAGE

XZN BMA180 Triple Axis Accelerometer Breakout
