Iduino DUE Pro Board with DUE Pro USBSerial Adapter

Ask a question SKU:WER-U-0523 Sold:10 Weight:0.093Kg
In stock, usually dispatched in 1-2 business days
Price: US$42.00
Return Policy:
No return necessary if product not as described, agree refund with seller View details
Seller Guarantees:
  • Click to Verify - This site has chosen an SSL Certificate to improve Web site securityClick to Verify - This site has chosen an SSL Certificate to improve Web site security
  • This site is protected by Trustwave's Trusted Commerce program
  • SGS No.: QIP-ASR144057
    Supplier Name: Shanghai Wer-China Industry Co., Ltd.

New Products  [more]

  • Product details
  • Shipping methods
  • Payment methods
  • Transaction History

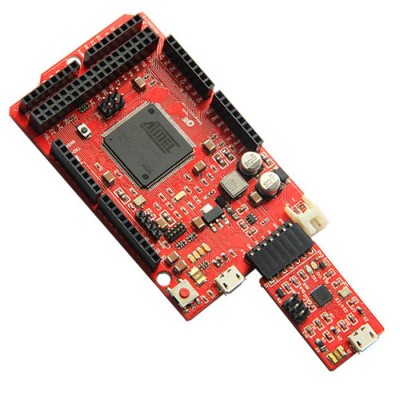

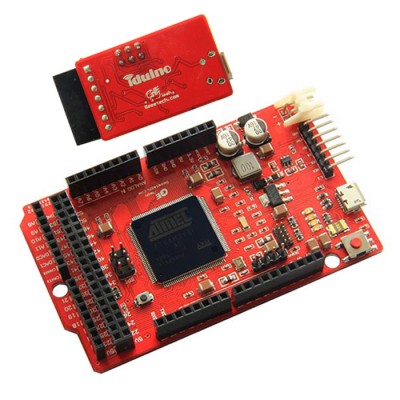

Iduino DUE Pro board derives from Arduino Due. It is completely compatible with Arduino Due.We made some changes on the original board,we removed one USB port and leave users more chances to develope on another.And all the pins for external programmer are broken out. The microcontroller board also is based on theAtmel SAM3X8E ARM Cortex-M3 CPU .It has 54 digital input/output pins (of which 12 can be used as PWM outputs),12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack,an SPI header, a JTAG header, a reset button and an erase button.Users could program it with Arduino IDE(Arduino v1.5.2 Beta:).

This Iduino Due board has pins for external programmer. User may need other ways to programming it, such as programming wirelessly, or through Internet. Of course,it is more cost-efficient external programmer uses the ATmega16U2 as a USB-to-serial chip connected to the first UART of the SAM3X . Similar with boards such as Arduino Mini or Arduino Pro, many board could share one external programmer.If you need 10 boards to build your projects,you only need one external programmer. That will save you much money.


Warning: Unlike other Iduino boards, the Iduino Due Pro board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.

Note: DUE Pro USB/Serial Adapter don't plug in the header to Iduino DUE Pro board when power on from the DC power jack .


Differnece from Arduino DUE:

1.Oscillator for RTC is assembled

2.Removed the ATmega16U2 chip, break out programming pins for external downloader.

3.5V Serial interface is available

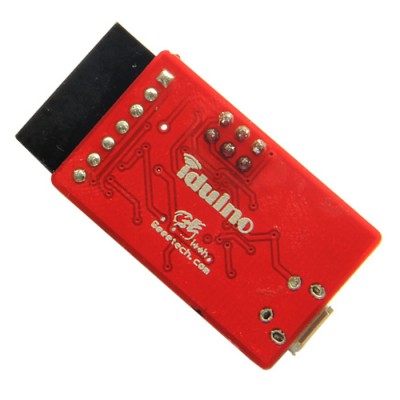

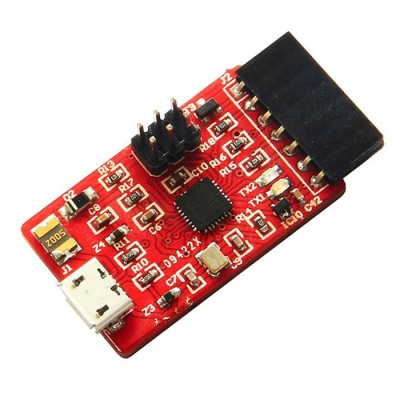

DUE Pro USB/Serial Adapter:

The DUE Pro USB/Serial Adapter is designed based on the ATmega16U2 circuit on Arduino DUE. With the bended female header, users could plug in the header to Iduino DUE Pro board.


Microcontroller: AT91SAM3X8E

Operating Voltage: 3.3V

Recommended Input Voltage: 7-12V

Min-Max Input Voltage: 6-15V

Digital I/O Pins: 54 (of which 12 provide PWM output)

Analog Input Pins: 12

Analog Outputs Pins: 2

Total DC Output Current on all I/O lines: 130 mA

DC Current for 3.3V Pin: 800 mA

DC Current for 5V Pin: 800 mA

Flash Memory: 512 KB all available for the user applications

SRAM: 96 KB (two banks: 64KB and 32KB)

Clock Speed: 84 MHz
