24''*59''(60cm*150cm) A1 ED6015UV LED UV Flatbed Printer (EPSON DX5 Printhead)
Model |
UV LED A1 WER-ED6015UV |
Printing size |
600*1500mm |
Printing thickness |
200mm |
Max resolution |
2880*1440dpi |
Ink type |
UV LED curing ink |
Color number |
6 colors. |
Printing interface |
USB 2.0 high speed interface & 100 Base-T Ethernet interface |
Printing Direction |
Smart Bi-directional Printing Mode |
Printing method |
Drop on Demand (non-contact micro piezoelectric ink-jet printing technology; |
Ink used |
180nozzle/color*6; VSDT |
C, M, Y, K, W, W. |
Applicable industry |
Rigid PVC board, glass, plastic, organic board, leather, rubber, special paper, metal, wood, porcelain, PVC, ABS, acrylic, aluminum, iron sheet, ceramic tile, glass, marble, granite, paperboard etc |
Preprocessing of the printing material |
Specialized coating (no-coating ink can be used directly.) |
Printing method |
Drop on Demand (non-contact micro piezoelectric ink-jet printing technology; micro piezoelectric printing technology; VSDT; intelligent nozzle clogging sensor system). 180nozzle/color*8; VSDT |
Printing speed for A1 size |
about 3.4min(360*360dpi; draft model) |
about 6.9min (720*360dpi; quality model) |
about 49min (720*720dpi; photo quality model) |
90s for A4 profile photo chrome model |
Height detection of printing material |
Infrared sensor |
Power consumption |
136 W/ Hour |
Ink consumption |
10 ML/SQM. |
Lamp type |
LED Lamp (saving energy and environmental friendly) |
Auto adjustment function |
Nozzle automatic detection; print head automatic aligning |
Volume |
305cmx120cmx203cm |
Height adjustment |
Auto |
Normal working environment |
Temperature 10-35Celsius Humidity 20-80RH |
Power/ Voltage |
78W / 220V/110V |
Special remarks |
Customized service is available. |
Machine configuration |
USB line; driving software; power line; instruction book; washing and ink-joiner tool |
Operation system |
Windows 2000 / XP / WIN7/ Vista, etc. |
Product Details
DX5 Printhead
Instruction: Epson DX5, Resolution: 1440DPI
Color: 4 colors
Print mode: 4, 6, 8, 12 Pass
Notes:
A: Operators need to make antistatic treatment, please wear the Anti-static devices if permission, to prevent the high static load from burning the circuit board inside printhead
B: During installation, try not to directly touch the surface of printhead
Mainboard
Instruction: The mainboard and adapter board for controlling the printing of dual DX5 print heads
Notes:
A: Please connect the Ground Circuitry when installation
B: Please turn off power first, then plug or pull out connector of wire
Screen panel
Introduction: Contain some control button, like control the movement of X axis, Y axis and Z axis
Notes:
A. Do not touch the surface with sharp items
B. Please take care of the screen when operating
Cartridges
Introduction: 440ml single color cartridge
Notes:
Turn on the air hole when printing
Please do not mix different color ink for printing
DX5 headboard
Instruction: Printhead board
Optical input
Designed with individual adapter board for disassembling easily, reduce cost on repair,and more convenience on changing it
Notes:
A: Please connect the Ground Circuitry when installation
B: Please turn off power first, then plug or pull out connector of wire
Excellent After-sale Services:
1.One year warranty
You can discuss operation and maintenance with our technician online support service by Skype, MSN etc. Remote control will be provided upon request.
2. Free exchange of new components
Our quality is guaranteed 100%, the spare parts can be replaced within one year free of charge includes the airfreight by express, except for the print head and some consumable parts.
3. Free online consultation
The technician will keep online. No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily.
4. Free onsite installation and training
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

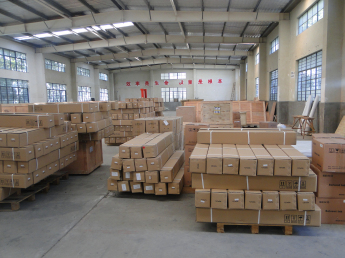

Packing and Loading to Truck
