XZN HM TRP Wireless Transceiver UART Program RS232 Remote contro

Ask a question SKU:WER-U-0603 Sold:10 Weight:0.05Kg
In stock, usually dispatched in 1-2 business days
Price: US$9.80
US$9.80
Shipping:
Return Policy:
No return necessary if product not as described, agree refund with seller View details
Seller Guarantees:
  • Click to Verify - This site has chosen an SSL Certificate to improve Web site securityClick to Verify - This site has chosen an SSL Certificate to improve Web site security
  • This site is protected by Trustwave's Trusted Commerce program
  • SGS No.: QIP-ASR144057
    Supplier Name: Shanghai Wer-China Industry Co., Ltd.

New Products  [more]

  • Product details
  • Shipping methods
  • Payment methods
  • Transaction History

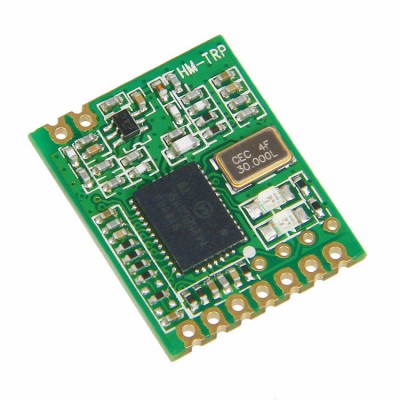

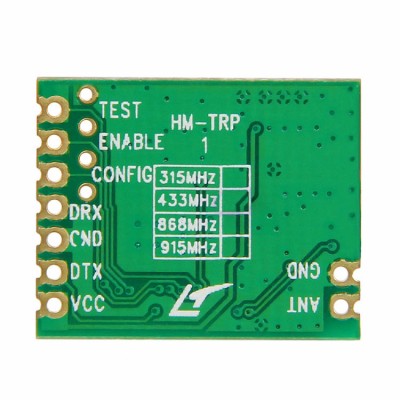

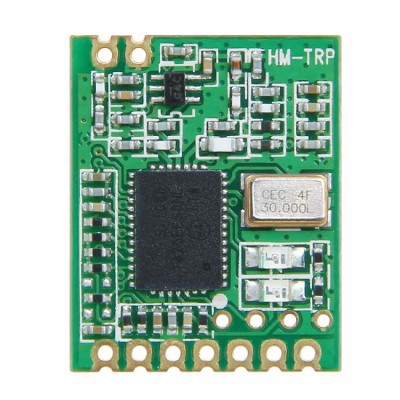

HM-TRP (3DR Firmware)series is a low cost,  high  performance  transparent  FSK transceiver with operating at 433/915 MHz. It features small size, high output power, high sensitivity, long transmission distance and high communication data rate with auto set up for communication change and data receiving and transmission control. There is UART interface, it is easy to realize the wireless data transmission with only providing the UART data. It is flexible for the users to set the UART baud rate, frequency, output power, data rate, frequency deviation, receiving bandwidth etc parameters. It is your ideal choice for designing wireless data transmission products which can be widely used on wireless data transmission field.


Features

1.  Low cost, high performance , high reliability

2.  FSK modulation, 2-way half —duplex communication, strong anti-interfere

3.  433/915MHz ISM band globally license free.

4.  Maximal output power1OOmW(2OdBm) output power adjustable between 1-2OdBm

5.  Sensitivity -117dBm

6.  Supply current for Tx 1OOmA@2OdBm, 4OmA@14dBm

7.  Supply current for Rx 25mA

8.  Low current sleep mode 1uA

9.  Standard TTL UART interface, extendable to RS232 or other interface

10.  Operation frequency can be configured, acceptable for several modules working in different frequency with no disturbance on each other.

11.  Optional for frequency deviation and receiving ISM bandwidth, users can be modulated by software.

12.  Easily use, auto exchange on communication & transceiver

13.  Communication speed 1.2kbps -115.2kbps    can be modulated through software

14.  Afford ENABLE control signal    user self control work duty cycle

15.  RSSI function

16.  With LED indication

17.  Longer transmission distance over 1Km in open air

18.  Small size 16X2OX2MM 9 PIN DIP & 9 PIN SMD package easy for assembly .

19.  Tuning free

20.  Accord FCC,ETSI standard
