Iduino DUE Board

Ask a question SKU:WER-U-0521 Sold:10 Weight:0.057Kg
In stock, usually dispatched in 1-2 business days
Price: US$25.00
US$25.00
Shipping:
Return Policy:
No return necessary if product not as described, agree refund with seller View details
Seller Guarantees:
  • Click to Verify - This site has chosen an SSL Certificate to improve Web site securityClick to Verify - This site has chosen an SSL Certificate to improve Web site security
  • This site is protected by Trustwave's Trusted Commerce program
  • SGS No.: QIP-ASR144057
    Supplier Name: Shanghai Wer-China Industry Co., Ltd.

Recently Viewed

New Products  [more]

  • Product details
  • Shipping methods
  • Payment methods
  • Transaction History

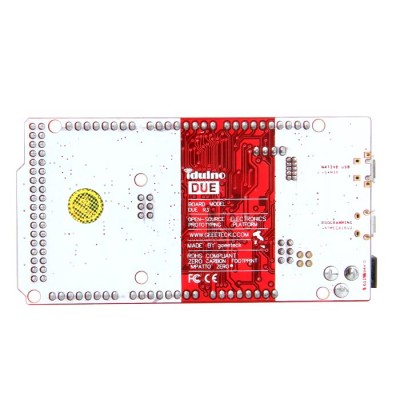

The Iduino Due is Arduino's first ARM-based Arduino development board.The Iduino Due Board has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), an 84 MHz clock, a USB-OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button. There are also some cool features like DACs, Audio, DMA , an experimental multi tasking library and more. To compile code for the ARM processor, you'll need the latest version of the Arduino IDE: v1.5 (After a period of testing and debugging this will replace the 1.0.1 IDE altogether).

Note: Unlike other Iduino boards, the Iduino Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.


Specifications:

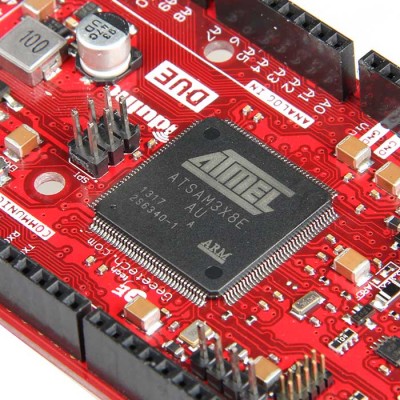

Microcontroller: AT91SAM3X8E

Operating Voltage: 3.3V

Recommended Input Voltage: 7-12V

Min-Max Input Voltage: 6-15V

Analog Input Pins: 12

Analog Outputs Pins: 2

DC Current for 3.3V Pin: 800 mA

DC Current for 5V Pin: 800 mA

Clock Speed: 84 MHz

Flash Memory: 512 KB all available for the user applications

Total DC Output Current on all I/O lines: 130 mA


 Package list:

 1 x  Iduino Due
